APAQ C130RTD
Digital 2-wire transmitter for Pt100 and Pt1000 with wireless communication
The APAQ C130 is a modern transmitter with high reliability and
great performance. External influences such as ambient temperature, vibration, moisture and EMC interference have minimal influence on the measurement result, thanks to the robust design.

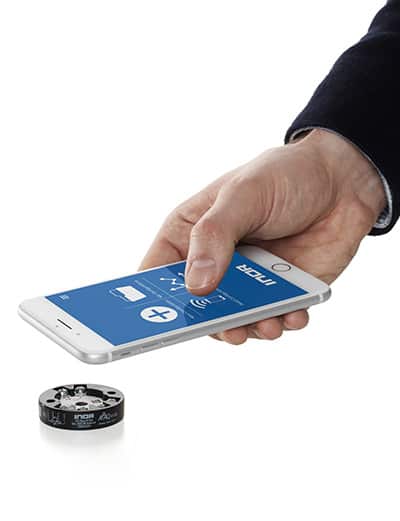

What characterizes APAQ C130 is simplicity. You can easily configure the transmitters wirelessly via NFC with your smartphone or tablet. There is no need for expensive configuration tools or fixed workstations for transmitter configuration.
Technical Specification
| Type | Head mounted |
| Input | Pt100, Pt1000 |
| Type of transmitter | Digital |
| Output | 4-20 mA |
| Measuring range | –200…+850 °C / -328…+1562 °F |
| Sensor error | NAMUR NE43 |
| Adjustments – Zero point | Any value within range limits |
| Adjustments – Minimum span | 20 °C / 36 °F |
| Ambient temperature | –40…+85 °C / -40…+185 °F |
| Humidity | 0…98% RH (non-condensing) |
| Vibration | IEC 60068-2-6,10 g |
| EMC | EN 61326-1 and EN 61326-2-3 |
| Isolation | Unisolated |
| Power supply | 6…32 VDC |
| Long-term stability | Max. drift ±0,05 % of span/year |
| Typical accuracy | Max. ±0,15 K or ±0,15 % of span |
| Adjustable filtering level | 0,4 to 26 s |
| Configuration | App: INOR Connect* |
| Wireless communication | NFC® |
* Available for free download on App Store, Google Play store and Huawei AppGallery
