IsoPAQ-661

Isolation transmitter for Bipolar and Unipolar mA/V signals with calibrated range selection

The Bipolar Isolation Amplifier IisPAQ-661 is used for isolation and conversion of bipolar and unipolar industrial standard signals.

The input and output range of IsoPAQ-661 can be easily set by using DIP switch. Due to the calibrated range selection no further adjustment is necessary.

A switchable compensation of the measuring range can be performed at the Zero/Span potentiometers on the front panel. Also the cut-off frequency can be adapted to the measurement task by using the DIP Switch.

The auxiliary power can be supplied via the connection terminals or via the optional In-Rail-Bus connector. A green LED on the front of the unit has been provided to monitor the power supply.

  • Calibrated signal setting via DIP switch
    Input and output range can be set by using DIP switch – high precision without any further adjustment
  • High bandwidth; short response time
    No signal distortion; no falsification of measured signal
  • Switchable Zero/Span compensation
    For readjustment of the sensor or field device

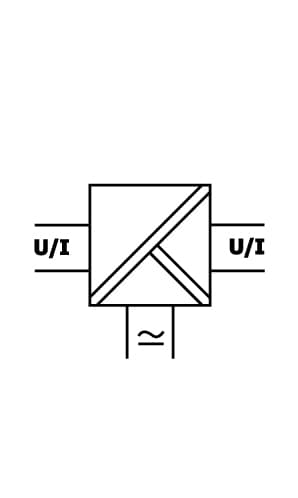

  • 3-Port isolation
    Protection against erroneous measurements due to parasitic voltages or ground loops
  • Extremely slim design
    6.2 mm slim housing for a simple and space saving DIN rail mounting
  • Optional In-Rail-Bus mounting rail connector
    Allows for fast and economical installation
  • Protective Separation acc. to EN 61140
    Protects service personnel and downstream devices against impermissibly high voltage

Technical Specification

Input
Input Current
(calibrated switchable)
±20 mA,   0… 20 mA,   4… 20 mA
±10 mA,   0… 10 mA,   2… 10 mA
Input Voltage
(calibrated switchable)
±10 V,    0… 10 V,    2 … 10 V
±5 V,      0… 5 V,      1 … 5 V
Input resistanceCurrent: ≤ 25 Ω
Voltage: ≥ 1 MΩ
OverloadCurrent: < 50 mA
Voltage: < 30 V
Output
Output Current
(calibrated switchable)
±20 mA,   0… 20 mA,   4… 20 mA
±10 mA,   0… 10 mA,   2… 10 mA
Output Voltage
(calibrated switchable)
±10 V,    0… 10 V,    2 … 10 V
±5 V,      0… 5 V,      1 … 5 V
LoadCurrent: ≤ 12 V (600 Ω vid 20 mA)
Voltage: ≤ 5 mA (2 kΩ vid 10 V)
Linear transmission rangeUnipolar: -1… +110 %
Bipolar: -110… +110 %
Residual ripple< 10 mVrms
General Data
Transmission error< 0.1 % full scale
Temperature coefficient< 100 ppm/K
Zero/Span compensation5% of measuring range
Cut-off frequency -3 dBCurrent: 8 kHz
Voltage: 100 Hz
Response time T99100 µs / 7 ms
Test voltage3 kV AC, 50 Hz, 1 min.
Input against output against power supply
Working voltage (Basic Insulation)600 V AC/DC for overvoltage category II and pollution degree 2 acc. to EN 61010-1
Protection against electrical shockProtective separation according to EN 61140 by reinforced insulation in accordance with EN 61010-1 up to 300 V AC/DC for overvoltage category II and pollution degree 2 between
all circuits.
Ambient temperatureOperation
– 25 °C to + 70 °C (– 13 to + 158 °F)
Transport and storage
– 40 °C to + 85 °C (– 40 to + 185 °F)
Power supply24 V DC voltage range 16.8 V … 31.2 V DC, approx. 0.8 W
EMCEN 61326-1
Construction62 x 96,5 x 107 mm , protection class IP 20, mounting on 35 mm DIN rail acc. to EN 60715
WeightApprox. 70 g
