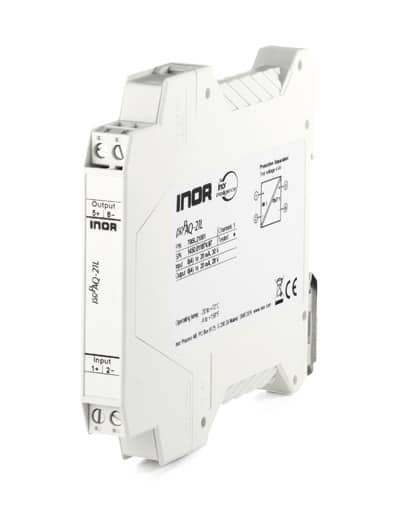

  • IsoPAQ-21L
    1-channel Loop Powered Isolators for 0(4)-20 mA Signals with High Isolation and Protective Separation
    • Type: Passive
    • No. Of channels: 1 channels
    • Isolation level: 4 kV, 50 Hz
    • Typical accuracy: 0,1% FS
    • Working voltage: 600 VAC/DC
    More info
    Isolator IsoPAQ-21L

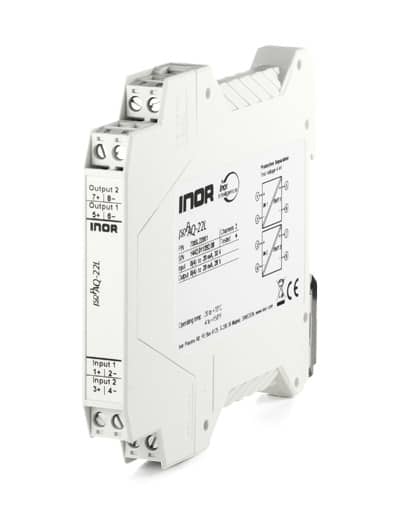

  • IsoPAQ-22L
    2-channel Loop Powered Isolators for 0(4)-20 mA Signals with High Isolation and Protective Separation
    • Type: Passive
    • No. Of channels: 2 channels
    • Isolation level: 4 kV, 50 Hz
    • Typical accuracy: 0,1% FS
    • Working voltage: 600 VAC/DC
    More info
    Isolator IsoPAQ-22L

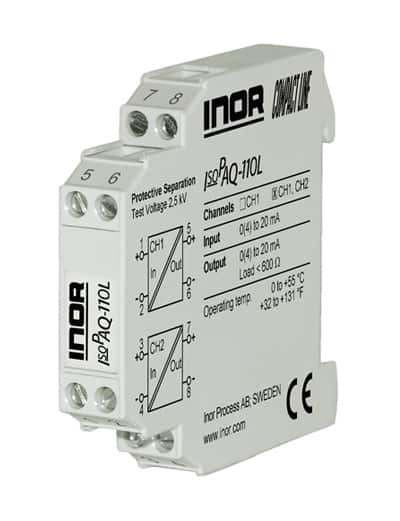

  • IsoPAQ-110L
    1- & 2-channel Loop Powered Isolators for 0(4)-20 mA Signals
    • Type: Passive
    • No. Of channels: 1 & 2 channels
    • Isolation level: 2,5 kV, 50 Hz
    • Typical accuracy: 0,15% FS
    • Working voltage: 600 VAC/DC
    More info
    Isolator IsoPAQ-110L

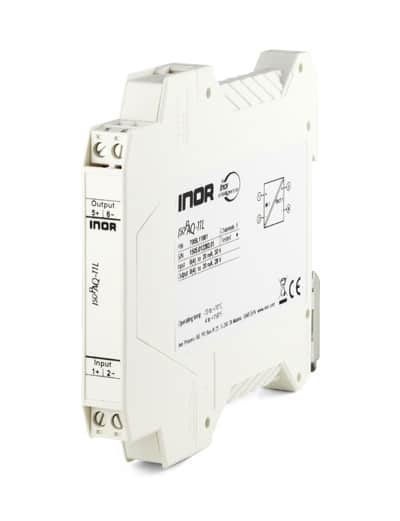

  • IsoPAQ-11L
    1-channel Loop Powered Isolator for Separation of 0(4)-20 mA Signals
    • Type: Passive
    • No. Of channels: 1 channel
    • Isolation level: 1,5 kV, 50 Hz
    • Typical accuracy: 0,1% FS
    More info
    Isolator IsoPAQ-11L

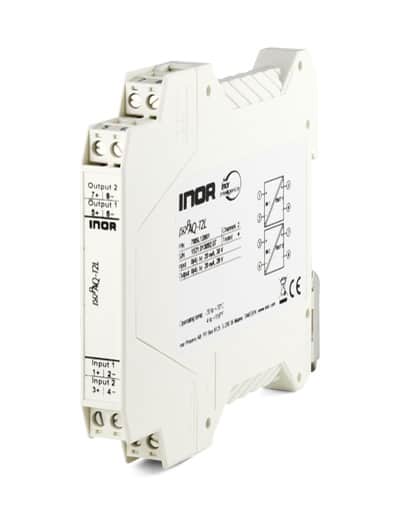

  • IsoPAQ-12L
    2-channel Loop Powered Isolator for Separation of 0(4)-20 mA Signals
    • Type: Passive
    • No. Of channels: 2 channels
    • Isolation level: 1,5 kV, 50 Hz
    • Typical accuracy: 0,1% FS
    More info
    Isolator IsoPAQ-12L

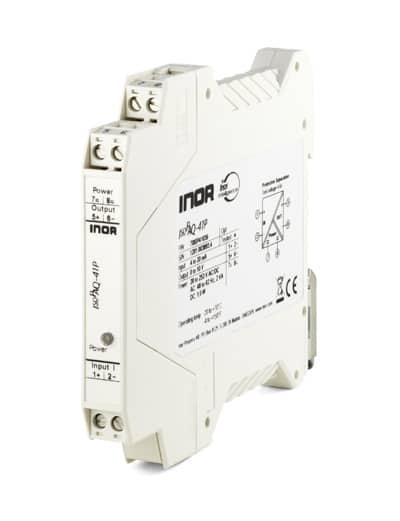

  • IsoPAQ-41P
    High-performance Isolation Transmitter for Unipolar mA/V Signals with Fixed Ranges
    • Type: Active
    • No. Of channels: 1 channel
    • Isolation level: 4 kV, 50 Hz
    • Typical Accuracy: 0,1% FS
    • Working voltage: 600 VAC/DC
    More info
    Isolator IsoPAQ-41P

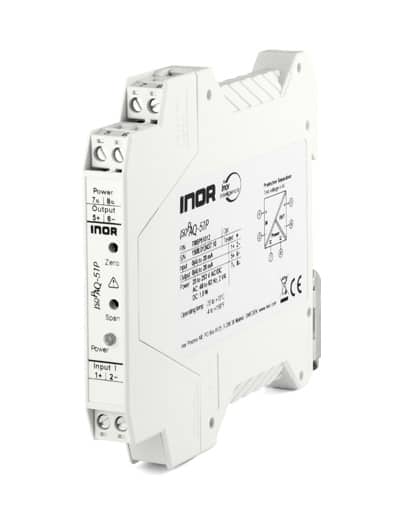

  • IsoPAQ-51P
    High-performance Isolation Transmitter for Unipolar mA Signals with Fixed Range and Zero/Span Adjustment
    • Type: Active
    • No. Of channels: 1 channel
    • Isolation level: 4 kV, 50 Hz
    • Typical accuracy: 0,1% FS
    • Working voltage: 600 VAC/DC
    More info
    Isolator IsoPAQ-51P

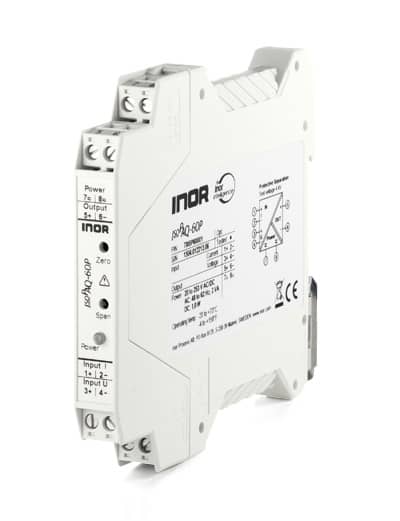

  • IsoPAQ-60P
    High-performance Isolation Transmitter for Bipolar and Unipolar mA/V Signals with Extensive Range Selection and Zero/Span Adjustment
    • Tyep: Active
    • No. Of channels: 1 channel
    • Isolation level: 4 kV, 50 Hz
    • Typical accuracy: 0,1% FS
    • Working voltage: 1000 VAC/DC
    More info
    Isolator IsoPAQ-60P
  • IsoPAQ-70S
    Basic Isolation Transmitter for Unipolar Shunt Voltages with Calibrated Range Selection
    • Type: Active
    • No. Of channels: 1 channel
    • Isolation level: 2,5 kV, 50 Hz
    • Typical accuracy: 0,3% FS
    • Working voltage: 600 VAC/DC
    More info
    Isolator IsoPAQ-70S

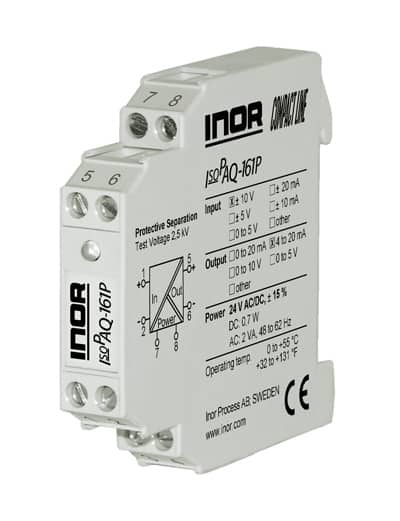

  • IsoPAQ-161P
    Isolation Transmitter for Bipolar and Unipolar mA/V Signals with Fixed Ranges
    • Type: Active
    • No. Of channels: 1 channel
    • Isolation level: 2,5 kV, 50 Hz
    • Typical accuracy: 0,2% FS
    • Working voltage: 600 VAC/DC
    More info
    Isolator IsoPAQ-161P

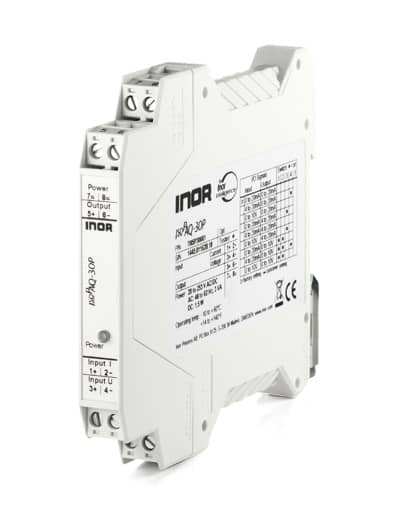

  • IsoPAQ-30P
    Basic Isolation Transmitter for Unipolar mA/V Signals with Calibrated Range Selection
    • Type: Active
    • No. Of channels: 1 channels
    • Isolation level: 2,5 kV, 50 Hz
    • Typical accuracy: 0,3 % FS
    • Voltage drop: <2,0 V
    More info
    Isolator IsoPAQ-30P

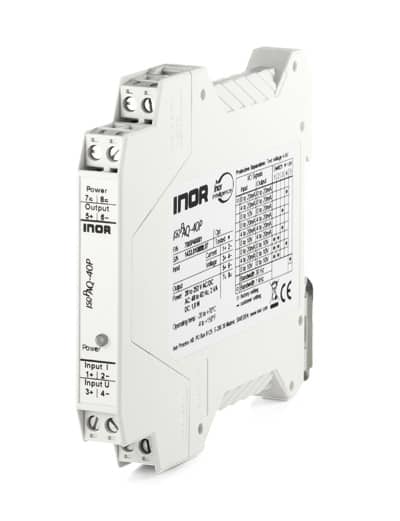

  • IsoPAQ-40P
    High-performance Isolation Transmitter for Unipolar mA/V Signals with Calibrated Range Selection
    • Type: Active
    • No. of channels: 1 channel
    • Isolation level: 4 kV, 50 Hz
    • Typical accuracy: 0,1% FS
    • Working voltage: 600 VAC/DC
    More info
    Isolator IsoPAQ-40P

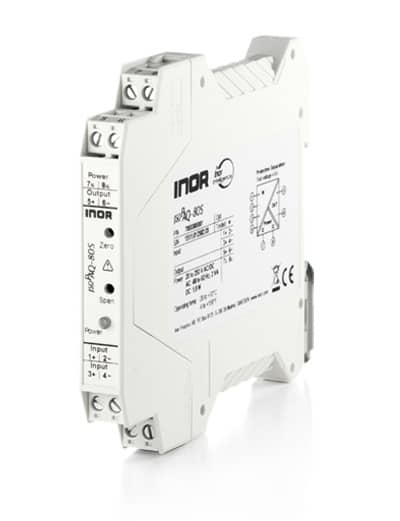

  • IsoPAQ-80S
    High-performance Isolation Transmitter for Bipolar and Unipolar Shunt Voltages with Extensive Range Selection and Zero/Span Adjustment
    • Type: Active
    • No. Of channels: 1 channel
    • Isolation level : 4 kV, 50 Hz
    • Typical accuracy: 0,1% FS
    • Working voltage: 1000 VAC/DC
    More info
    Isolator IsoPAQ-80S

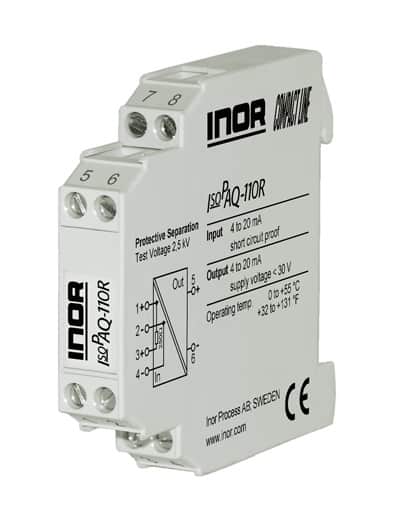

  • IsoPAQ-110R
    Transmitter Repeater for Powering and Isolation of 2-wire Transmitters
    • Type: Active
    • No. Of channels: 1 channel
    • Isolation level: 2,5 kV, 50 Hz
    • Typical accuracy: 0,1% FS
    • Working voltage: 600 VAC/DC
    More info
    Isolator IsoPAQ-110R

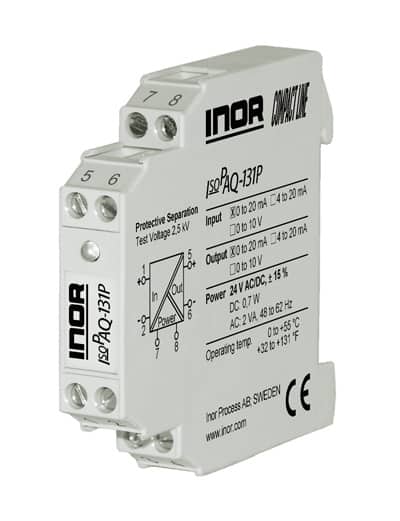

  • IsoPAQ-131P
    Isolation Transmitter for Unipolar mA/V Signals with Fixed Ranges
    • Type: Active
    • No of channels: 1 channel
    • Isolation level: 2,5 kV, 50 Hz
    • Typical accuracy: 0,2% FS
    • Working voltage: 600 VAC/DC
    More info
    Isolator IsoPAQ-131P
  • IsoPAQ-611
    1-channel Loop Powered Isolator for separation of 0(4)-20 mA Signals
    • Type: Passive
    • No. Of channels: 1 channel
    • Isolation level: 3 kV
    • Typical accuracy: 0,1% FS
    • Working voltage: 600 VAC/DC
    More info
    Isolator IsoPAQ-611

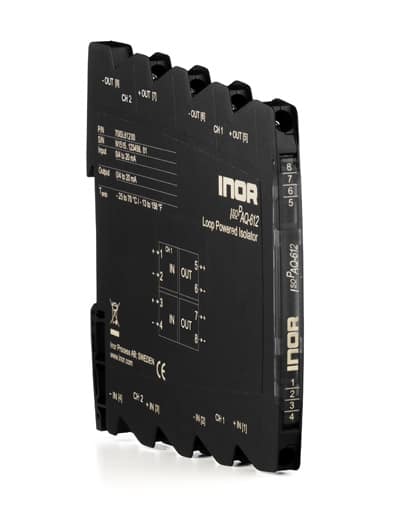

  • IsoPAQ-612
    2-channel Loop Powered Isolator for separation of 0(4)-20 mA Signals
    • Type: Passive
    • No. Of channels: 2 channels
    • Isolation level: 3 kV
    • Typical accuracy: 0,1% FS
    • Working voltage: 600 VAC/DC
    More info
    Isolator IsoPAQ-612
  • IsoPAQ-632
    Signal Splitter/Repeater with double outputs for mA and V signals
    • Type: Active
    • No. Of channels: 2 channels
    • Isolation level: 3 kV
    • Typical accuracy: 0,1% FS
    • Working voltage: 600 VAC/DC
    More info
    Isolator IsoPAQ-632

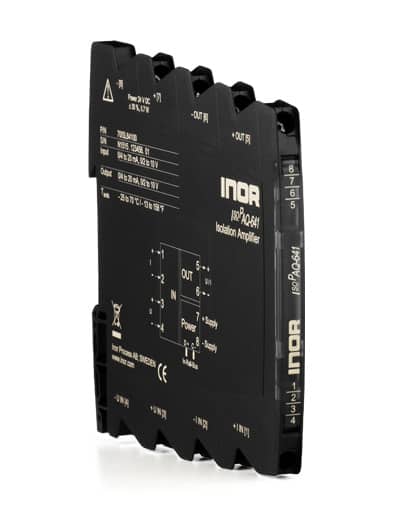

  • IsoPAQ-641
    High-performance isolation transmitter for mA/V Signals with calibrated range selection
    • Type: Active
    • No. Of channels: 1 channel
    • Isolation level: 3 kV
    • Typical Accuracy: 0,1% FS
    • Working voltage: 600 VAC/DC
    More info
    Isolator IsoPAQ-641

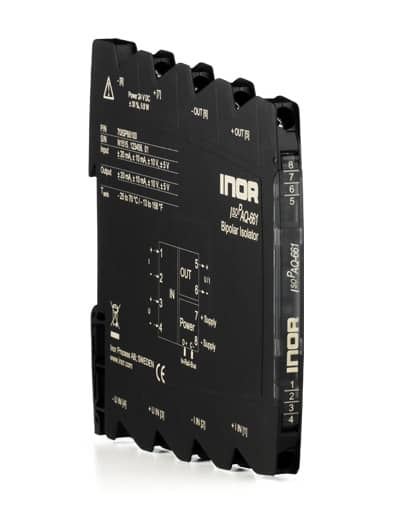

  • IsoPAQ-661
    Isolation transmitter for Bipolar and Unipolar mA/V signals with calibrated range selection
    • Type: Active
    • No. Of channels: 1 channel
    • Isolation level: 3 kV
    • Typical Accuracy: 0,1% FS
    • Working voltage: 600 VAC/DC
    More info
    Isolator Isopaq-661

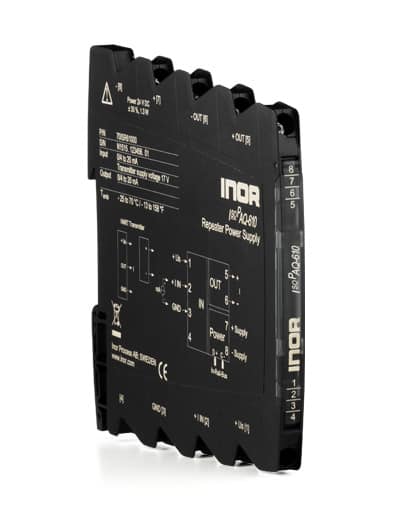

  • IsoPAQ-610
    Transmitter repeater for powering and isolation of 2-,3- and 4-wire transmitters
    • Type: Active
    • No. Of channels: 1 channel
    • Isolation level: 3 kV
    • Typical accuracy: 0,1% FS
    • Working voltage: 600 VAC/DC
    More info
    Isolator IsoPAQ-610

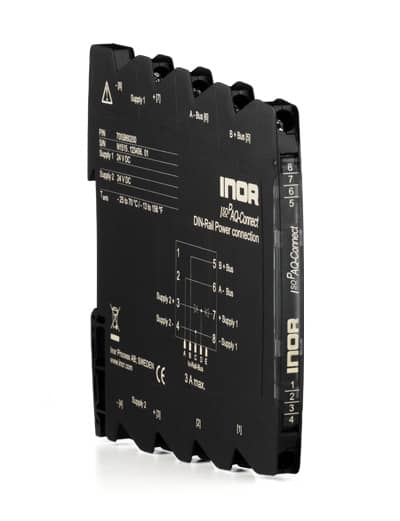

  • IsoPAQ-Connect
    In-Rail-Bus Power Terminal
    The 6.2 mm wide IsoPAQ-Connect power terminal is used for supplying the In-Rail-Bus DIN rail connector with supply voltage.
    More info
    IsoPAQ-Connect
  • DA561
    Isolation Transmitter for mA/V Signals with 2-wire Transmitter Supply
    • Type: Active
    • No. Of Channels: 1 channel
    • Isolation level: 1,5 kV
    • Typical accuracy: 0,15% FS
    • Power supply: 600 VAC/DC
    More info
    Transmitter DA561
  • DA562
    Dual Channel Isolation Transmitter for mA/V Signals
    • Type: Active
    • No. Of channels: 2 channels
    • Isolation level: 1,5 kV
    • Typical Accuracy: 0,15% FS
    • Power supply: 600 VAC/DC
    More info
    Transmitter DA562
  • IPAQ-L(mA)
    Programmable 2-wire Isolation Transmitter for mA Signals
    • Type: Active
    • No. Of channels: 1 channel
    • Isolationlevel: 1,5 kV
    • Typical Accuracy: 0,1% FS
    • Typical Accuracy: 7,5 to 36 VDC
    More info
    Isolation transmitter IPAQ-L (mA)
