Adapter mA

Adapter designed to enable connections of mA signals to the IPAQ R330.

Adapter (a shunt resistor) that converts mA signals to mV signals, designed to be mounted on the input connector of the 2-wire transmitter IPAQ R330.

The transmitter will then work as an active isolation transmitter for mA input signals with a 4-20 mA output in a 2-wire connection. It is suitable for direct connection to the input modules of a control system. Thanks to the programmable input range and the low input impedance, it meets almost any need for current signal isolation and load amplification.

Configure via the INOR Connect app or ConSoft.

Technical Specification

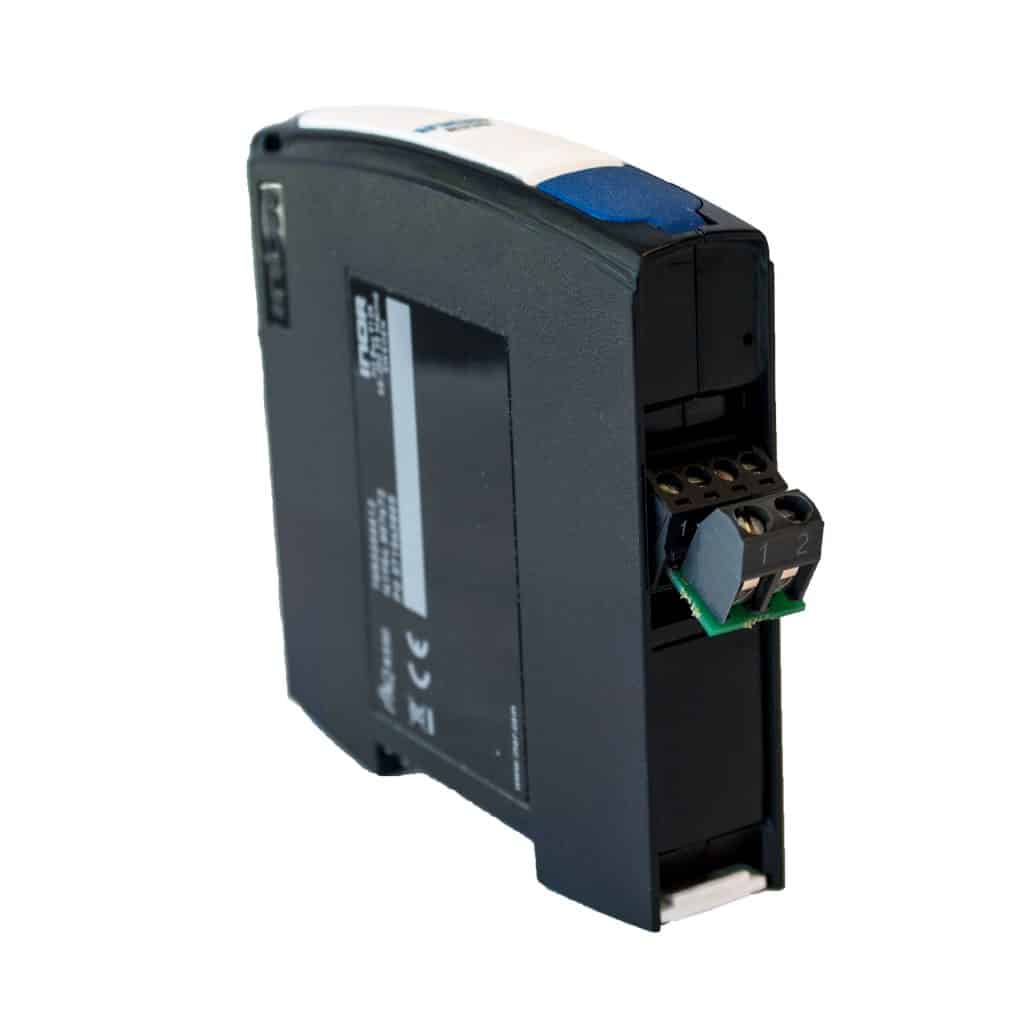

(Transmitter IPAQ R330 with mounted Adapter mA)

Input mA -1 till +100 mA
Input impedance 10 Ω
Adjustments – zero point Any value within range limits
Adjustments – minimum span 0,2 mA
Output signal 4-20 / 20-4 mA
Ambient temperature -40 to +85 °C / -40 to +185 °F
Galvanic isolation 1500 VAC, 1 min
Power supply 8.0 to 36 VDC
Typical accuracy ±0.1 of span
Mounting 35 mm DIN rail acc. EN 60715
