APAQ-L (Discontinued)

Analog Adjustable 2-wire Transmitters

APAQ-LR is a multirange 2-wire temperature transmitter for Pt100 input.

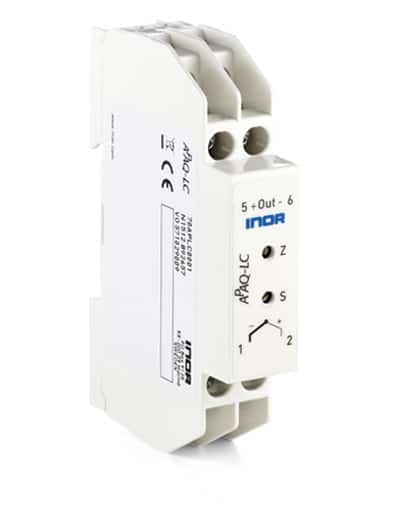

APAQ-LC is adjustable for 5 different thermocouple types. APAQ-LR/-LC are designed for highest reliability and excellent industrial performance.

  • Rangeable with solderpads and potentiometers
  • Temperature linear output for Pt100 (APAQ-LR)
  • mV linear output for thermocouples (APAQ-LC)
  • Consistent sensor break function
Category: .

Technical Specification

Type Rail-mounted
Input RTD; Thermocouple
Input RTD Pt100
Input Thermocouple Type J, L, T, K, N
Type Of Transmitter Analog
Output 4-20 mA
Isolation Unisolated
Measuring channels 1 channel
Sensor connection 3-wire connection
Power supply 6.5 to 32 VDC
Typical accuracy RTD: ±0.15% of span;
T/C: ±0.5% to ± 1.0% of span
