IPAQ-22 (Discontinued)

Universal 2-channels Programmable 2-wire Transmitter

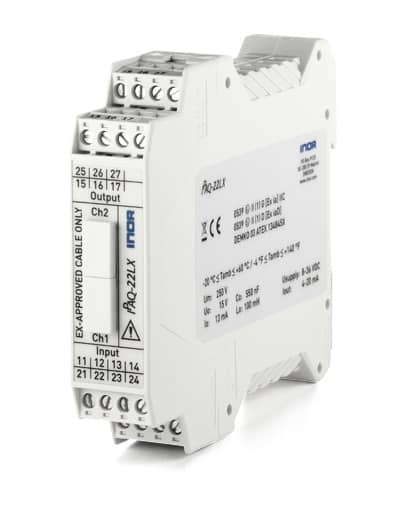

IPAQ-22LX is a 2-channels, universal, isolated 2-wire transmitter for Ex-applications.
No zener barriers or Ex power supplies are needed, which reduces costs for purchase, design and maintenance.
IPAQ-22L is a 2-channels versions for non-Ex-applications.

  • Very cost effective Ex-solution
  • Fully universal, linearized and isolated
  • Accepts RTD, T/C, mV and Ω
  • Sensor error and system (sensor/transmitter) error correction for
    highest total accuracy
  • Full access to all features while in operation
  • NAMUR compliant
  • Consistent sensor break function
  • Simplified loop check-up with calibration output
  • IPRO, easy-to-use Windows configuration software
  • Only 11 mm/channel
  • Fixed terminals or plug-in terminals with coding (see Ordering information)
Category: .

Technical Specification

TypeRail-mounted
InputRTD; Thermocouple; Universal
Input RTDPt100, Pt1000, Ni100, Ni120, Ni1000, Cu10
Input ThermocoupleType B, C, E, J, K, L, N, R, S, T, U
Type Of TransmitterDigital
Output4-20 mA
IsolationIsolated
Measuring channels2 channels
Sensor connection3-, 4-wire connection
Power supply8 to 36 VDC
ApprovalsATEX
Typical accuracy0.1% of span

Documents

Accessories

  • PC-configuration kit
