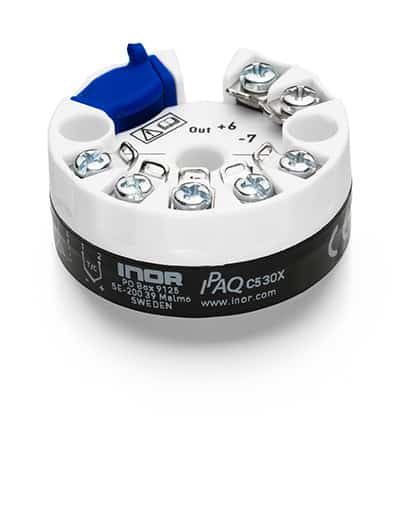

IPAQ C530

Universal HART-compatible 2-wire transmitter with wireless communication

IPAQ C530 is a modern, HART® temperature transmitter developed to meet the highest standards of accuracy and reliability. A universal transmitter compatible with RTD, thermocouples, voltage and potentiometer sensors, offering high flexibility and reduces the number of installed product variants.

It is fully compatible with HART® 7 and offers extended diagnostic information (for example device error, sensor and wiring conditions) making it reliable and highly precise.

IPAQ C530 supports communication via NFC® (Near-field communication) and Bluetooth® which makes it possible to configure and monitor the transmitter remotely.

Technical Specification

TypeHead-mounted
InputRTD, TC, mV, ohm
Input RTDPt100, Pt1000, Ni100, Ni120, Ni1000, Cu10
Input thermocoupleType B, C, D, E, J, K, N, R, S, T
Type of transmitterDigital
Output4-20 mA, HART protocol
Galvanic isolation1500 VAC
Measuring channels1 channel
Sensor connection2-, 3-, 4-wire connection
Power supplyIPAQ-C530: 8,5 to 36 VDC
IPAQ-C530X: 8,5 to 30 VDC
ApprovalsATEX, IECEx, cFMus
HART® complianceFully compliant with the HART® 7 protocol
as well as the previous HART® 6 and 5.
Typical accuracyMax. ±0.08K or ±0.08% of span
Accuracy over timeMax. drift ±0,02% of span/year
ConfigurationConSoft, INOR Connect or EDD, DTM / FDT-system
Wireless connectivityNFC® and Bluetooth® *
VibrationIEC 60068-2-6, 10 g
EMCEN 61326-1 and EN 61326-2-3
Humidity0…98% RH (non-condensing)
Ambient temperature–40…+85 °C / -40…+185 °F
Runtime counterHour counter for elapsed operational time
Simulated outputFixed current ouput during a maximum time of 15 min
Adjustable filtering level0,17 to 90 s (standard 0.9 s) (3-wire RTD)
Adjustments – Min. span10°C / 18°F or according to the sensor
Adjustments – Zero pointAny value within range limits
Sensor errorNAMUR NE43
Error compensationSensor and system error correction

* Bluetooth® communication is only supported together with ICON-BT

Documents

Accessories

  • ICON-BT (for Bluetooth communication)
  • ICON-X (PC Configuration Kit)
  • DIN-rail adapter
