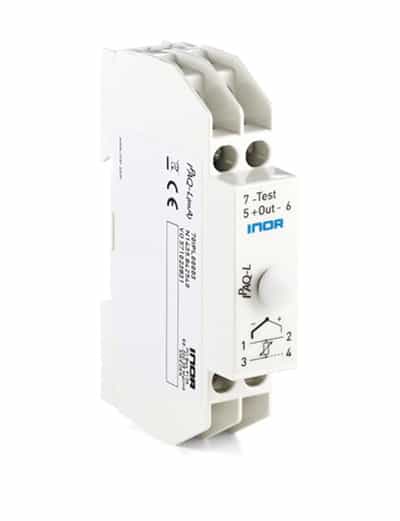

IPAQ-L(mA) (Discontinued)

Programmable 2-wire Isolation Transmitter for mA Signals

IPAQ-L(mA) is an active isolation transmitter for mA input signals with a 4-20 mA output in a 2-wire connection. It is suitable for direct connection to the input modules of a control system.
Thanks to the programmable input range and the low input impedance, IPAQ-L(mA) meets almost any need for current signal isolation and load amplification.

  • Input: mA signal
  • Programmable measuring range within -1 to +50 mA
  • Output: 4-20 mA in 2-wire connection
  • 1500 VAC isolation input/output
  • Low input impedance
  • Full access to all features while in operation
  • Simplified loop check-up with calibration output
  • Test output without breaking the loop
  • IPRO, easy-to-use Windows configuration software
Category: .

Technical Specification

Input mA-1 to +50 mA
Input impedance10 Ω
Adjustments – ZeroAny value within range limits
Adjustments – Minimum spans0,4 mA
Output4-20 / 20-4 mA
Operating temperature-20 to +70 °C / -4 to +158 °F
Galvanic isolation1500 VAC, 1 min
Power supply7,5 to 36 VDC
Typical accuracy±0,1 % of span
MountingDIN-rail acc. DIN EN50022, 35 mm
