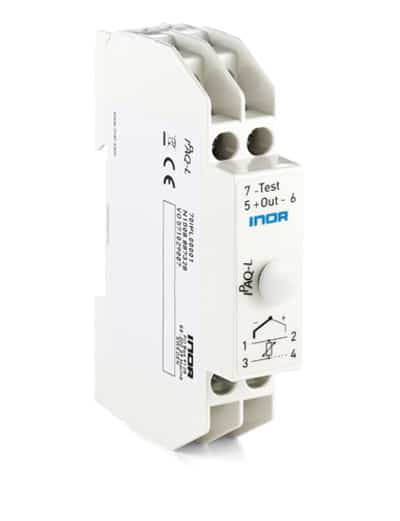

IPAQ-L (Discontinued)

Universal Programmable 2-wire Transmitters

IPAQ-L/-LX are universal, isolated 2-wire transmitters for temperature and other measurement applications. They combine competitive pricing, functionality and simple configuration. Useful error correction functions improve the accuracy.

  • Fully universal, linearized and isolated
  • Accepts RTD, T/C, mV and Ω
  • Sensor error and system (sensor/transmitter) error correction for
    highest total accuracy
  • Full access to all features while in operation
  • NAMUR compliant
  • Consistent sensor break function
  • Simplified loop check-up with calibration output
  • Test output without breaking the loop (IPAQ-L)
  • IPRO, easy-to-use Windows configuration software
Category: .

Technical Specification

Type Rail-mounted
Input RTD; Thermocouple; Universal
Input RTD Pt100, Pt1000, Ni100, Ni120, Ni1000, Cu10
Input Thermocouple Type B, C, E, J, K, L, N, R, S, T, U
Type Of Transmitter Digital
Output 4-20 mA
Isolation Isolated
Measuring channels 1 channel
Sensor connection 3-, 4-wire connection
Power supply IPAQ-L: 7.5 to 36 VDC; IPAQ-LX: 8 to 30 VDC
Approvals ATEX; CSA; FM
Typical accuracy 0.1% of span


  • PC Configurations Kit
