Transmitter Repeater for Powering and Isolation of 2-wire Transmitters

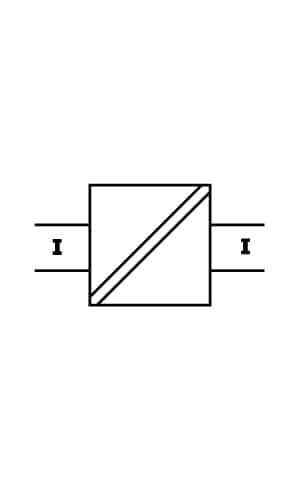

IsoPAQ-110R is a Transmitter Repeater for powering and isolation of a non-isolated 2-wire transmitter.
Thanks to the isolation, the 4-20 mA transmitter signal can be connected to a grounded input circuit of a control system without risk for measurement errors due to ground loops.
The Transmitter Repeater needs no power supply, which contributes to reduced installation costs.
The high reliability ensures a safe system operation and low maintenance costs.

  • Transmitter isolation
  • Transmitter powering
  • High accuracy
  • HART communication
  • Fixed ranges
  • Protective Separation acc. to EN 61140
  • Compact DIN-rail mounting

Technical Specification

Type of input Active
No. of channels 1 channel
Input signal 4…20 mA
Output signal 4…20 mA
Configuration Fixed range
Typical accuracy 0,1 % FS
Isolation level 2,5 kV, 50 Hz
Working voltage 600 VAC/DC
Power supply 15…30 VDC
Protective separation Yes
Response time < 10 ms
Ambient temperature 0…+55 °C
Housing width 11,2 mm
Installation depth 60 mm
