IsoPAQ-161P
Isolation Transmitter for Bipolar and Unipolar mA/V Signals with Fixed Ranges
The Isolation Transmitter IsoPAQ-161P is mainly used for isolation of bipolar signals, such as ±20 mA, ±10 mA, ±10 V, ±5 V, and conversion into unipolar output signals.
For applications where normally one signal combination only is used, IsoPAQ-161P offers a cost-effective alternative. The high reliability and the Protective Separation are further features, which ensure a safe system operation.

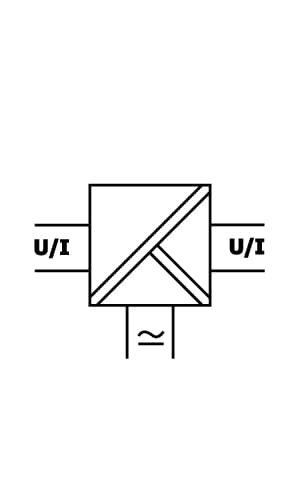

- 3-port isolation
- Bipolar input signals
- Fixed ranges
- Universal power supply for 24 VAC/DC
- Protective Separation acc. to EN 61140
- Compact DIN-rail mounting
- Excellent reliability
Technical Specification
| Type of input | Active |
| No. of channels | 1 channel |
| Input signal | ±10 mA ±20 mA ±5 V ±10 V 0…5 V |
| Output signal | 0…20 mA 4…20 mA 0…5 V 0…10 V |
| Configuration | Fixed ranges |
| Typical accuracy | 0,2 % FS |
| Isolation level | 2,5 kV, 50 Hz |
| Working voltage | 600 VAC/DC |
| Power supply | 24 VAC/DC |
| Protective separation | Yes |
| Response time | < 5 ms |
| Ambient temperature | 0…+55 °C |
| Bipolar input | Ja |
| Housing width | 11,2 mm |
| Installation depth | 60 mm |
