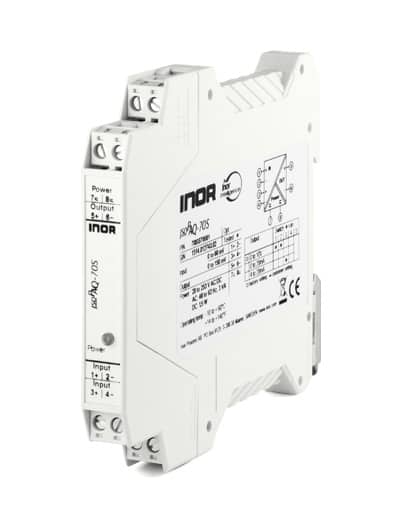

IsoPAQ-70S (Discontinued)

Basic Isolation Transmitter for Unipolar Shunt Voltages with Calibrated Range Selection

The Isolation Transmitter IsoPAQ-70S is used for isolation and conversion of unipolar shunt voltages into standard mA/V signal. Due to the calibrated range selection and the universal power supply, IsoPAQ-70S provides excellent flexibility and low storage and installation costs.
The high reliability ensures a safe system operation and low maintenance costs.

  • Calibrated range selection
  • Universal power supply for 20 to 253 VAC/DC
  • 3-port isolation
  • High-density DIN-rail mounting
  • Plug-in screw terminals
  • Excellent reliability
Category: .

Technical Specification

Type of inputActive
No. of channels1 channel
Input signal0…60 mV 0…150 mV
Output signal0…20 mA 4…20 mA 0…10 V
ConfigurationCalibrated range selection
Typical accuracy0,3 % FS
Isolation level2,5 kV, 50 Hz
Working voltage600 VAC/DC
Power supply20…253 VAC/DC
Cut-off frequency (-3 dB)1 kHz
Ambient temperature10…+60 °C
Plug-in screw terminalsJa
Housing width12,5 mm
Installation depth104 mm
