LCD-H20
Loop Powered LCD Indicator for In-head Mounting
LCD-H20 is a digital indicator for installation directly in a 4-20 mA loop
without need for external power. LCD-H20 is designed for in-head mounting in a sensor connection head with glass window.
The indicator is equipped with high-contrast, easy-to-read LCD digits.
The scale is easily programmable, without reference signal, by three pushbuttons for any values between -1999 and 9999.

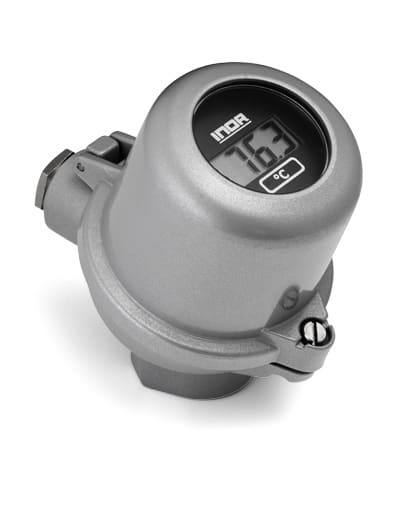

As an option, LCD-H20 can be delivered mounted in a connection head.
- Installation directly in a 4-20 mA loop without need for power supply
- 2.5 V voltage drop
- High-contrast, 4-digit LCD display with 12 mm digits
- Simple pushbutton scaling without reference signal
- Any range between -1999 to 9999 for 4 to 20 mA input
- Labels for different engineering units are included
- Typical accuracy of 0.1 % allows for high precision read-outs
- HART transparent
- Designed for ambient temperatures between -20 to +70 °C /-4 to +158 °F
- Protection IP65 when mounted in connection head Type 1 or Type 2
Technical Specification
| Type of Display | LCD |
| Input Current | 4-20 mA |
| Maximum Current | 22 mA |
| Minimum current for operation | 3,8 mA |
| Voltage drop | 2,5 V |
| Indication range | -1999 to 9999 |
| Digit height | 12 mm |
| Protection class | IP20 (IP65 in connection head) |
| Typical accuracy | ±0.1 % of programmed span ±1 digit |
| Operation temperature | -20 to +70 °C / -4 to +158 °F |
| Dimensions | Diameter 59 mm, height 20 mm |
