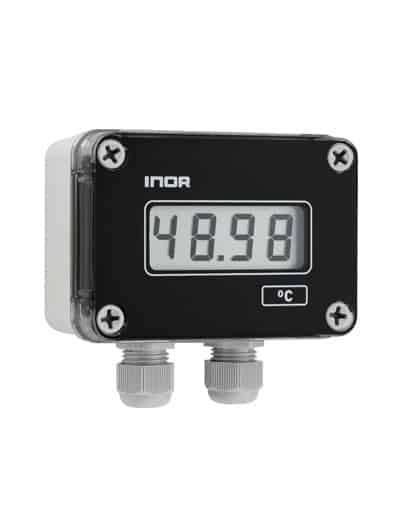

LCD-W11 (Discontinued)

Loop Powered LCD Indicators for Field Mounting

LCD-W11 is a digital indicator for installation directly in a 4-20 mA loop without need for external power. The indicator comes with a high-contrast LCD display and the scale is easily programmable without reference signal.
LCD-W11 is designed for field mounting on wall, pipe or DIN rail and has a rugged and splash proof housing.
A temperature transmitter can be integrated for direct sensor input.

  • High-contrast, 4-digit LCD display with 17.8 mm / 0.7 ” digits
  • Installation directly in a 4-20 mA loop without need for separate power supply
  • Simple pushbutton scaling without reference signal
  • Any range between -1999 to 9999 for 4 to 20 mA input
  • Labels for different engineering units are included
  • Typical accuracy of 0.05 % allows for high precision read-outs
  • HART transparent
  • Integrated transmitter as added option
  • Field mounting in rugged IP65 / NEMA 4X housing with double cable conduits
Category: .

Technical Specification

Type of DisplayLCD
Input Current4-20 mA
Maximum current30 mA
Minimum current for operation~3,5 mA
Voltage drop~3 V
Indication range-1999 to 9999
Digit height17,8 mm
Protection classIP65 / NEMA 4X
Typical accuracy0,05 % FS ±1 digit
Operation temperature-30 to +80 °C
Dimensions80 x 110 x 65 mm
