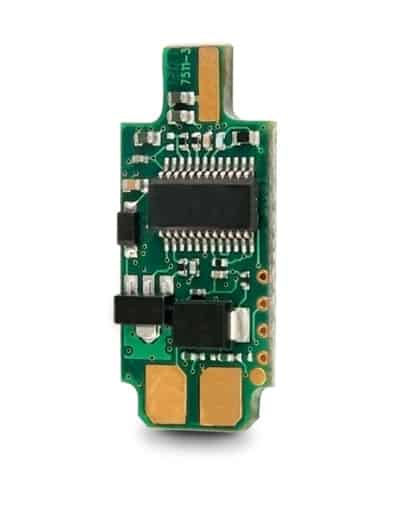

OEM201W (Discontinued)
Analog temperature transmitter for integration into temperature sensors, systems or machines
OEM201W is an analog temperature transmitter for integration into temperature sensors, systems or machines, for converting a low-level sensor output to an amplified signal. Based on INOR’s successful transmitter IPAQ C201, OEM201W offers high accuracy and fast response time. The small form factor and the three different designs, allows it to fit almost any application. The transmitter range is available in preconfigured, as well as configurable versions.
The transmitter is connected to the process and sensor with solder pads.
Technical Specification
| Output | 4…20 mA, temperature linear |
| Sensor element | Pt100 (IEC 60751, α =0.00385) – 3-wire |
| Sensor break | Upscale (≥21.0 mA) |
| Sensor short-circuit | Downscale (≤3.6 mA) |
| Measuring range | 0… +100°C / -50…+150°C |
| Typical accuracy | ±0,15°C or ±0,15% of the measuring span |
| Long-term stability | ±0.1% of span per year |
| Response time | |
| Ambient temperature | Operating: –40…+85°C Storage: –50…+100°C |
| Power supply | 7.5 to 32 VDC |
| Permissible load | 750Ω @ 24 VDC |
| Galvanic isolation | No |
| Vibration | Acc. to IEC60068-2-6, test Fc, 10-2000Hz, 10g |
| Shock | Acc. to IEC60068-2-31, test Ec |
| EMC | Acc. to IEC61326-1* |
* Typical EMI immunity 0.15% of the measuring span, for some fq >1%
