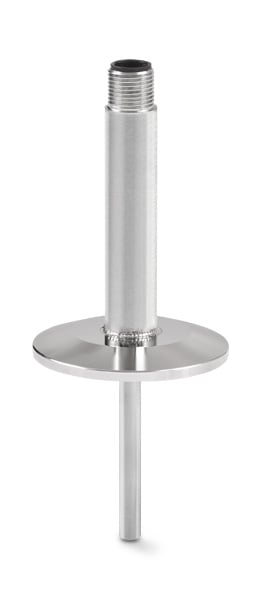

TRA-C10

Hygienic compact sensor with flange DN25/38 ISO 2852 clamp connection

For measuring the temperature of gases, liquids and vapour from -50 °C to +200 °C.Especially suited for industrial applications with hygienic requirements and limited space.

The compact sensor is made of stainless steel 1.4404 / 316L and has a surface
fineness of Ra Á 0.8 ¿m for the wetted parts. It is connected to the process by using
a ISO 2852 Clamp DN25/38. The sensor elemtent is a Pt100 RTD Thin film according to DIN EN 60751. The compact sensor electrical connection is made via a M12 connector.

The sensor is available with a built-in transmitter.

Technical Specification

Measuring element Pt100
Process temperature -50…+200°C
Process connection Flange
Thermowell Welded
Material 1.4404 / 316L
Diameter 6 mm
Shape of thermowell Straight
Protection class IP67
