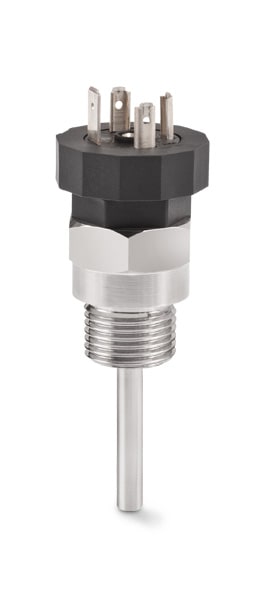

TRA-C20
Compact sensor for screw-in
For measuring the temperature of gases, liquids, vapour and solids from
-50 °C to +200 °C. Especially suited for industrial applications with limited space.

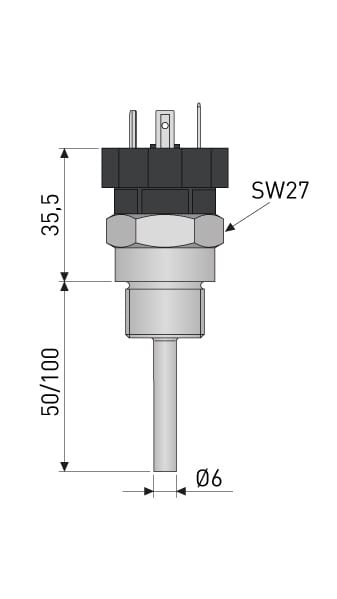

The compact sensor is made of stainless steel 1.4404 / 316L and is connected to the process by a G1/2 thread. The sensor elemtent is a Pt100 RTD Thin film according to DIN EN 60751 and the electrical connection is made via a Valve EN 175301-803 connector.
The sensor is available with a built-in transmitter.
Technical Specification
| Measuring element | Pt100 |
| Process temperature | -50…+200°C |
| Process connection | Screw-in |
| Thermowell | Welded |
| Material | 1.4404 / 316L |
| Diameter | 6 mm |
| Shape of thermowell | Straight |
| Protection class | IP65 |
