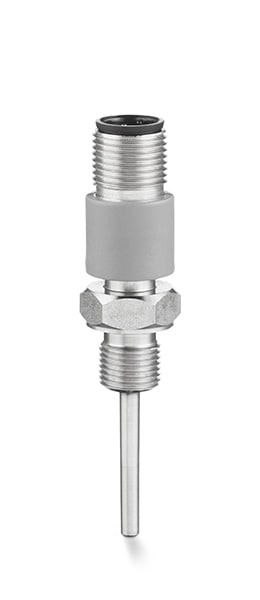

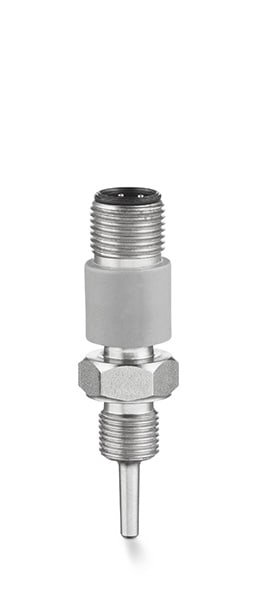

Compact sensor for screw-in

For measuring the temperature of gases, liquids, vapour and solids from
-50 °C to +120 °C. Especially suited for industrial applications with limited space.

The compact sensor is made of stainless steel 1.4404 / 316L and is connected
to the process by screw-in. The sensor elemtent is a Pt100 RTD Thin film
according to DIN EN 60751 and the electrical connection is made via a M12

Technical Specification

Measuring element Pt100
Process temperature -50…+120°C
Process connection Screw-in
Thermowell Welded
Material 1.4404 / 316L
Diameter 3 mm
Shape of thermowell Straight
Protection class IP67
